Integrated Air Traffic Control Transponder
ETR56UAA
The integrated air traffic control transponder is a miniaturized civil transceiver device carefully designed and developed based on the advanced software radio (SDR) platform. This product meets the relevant regulations of the International Civil Aviation Organization (ICAO) ANNEX10 and RTCA DO-260, and integrates three functions of air traffic control (ATC) response, ADS-B OUT and ADS-B IN. It can be used for the safe identification and flight safety of manned or unmanned aircraft, and has the IFF/SSR capability of civil aircraft.
Receive air traffic control interrogation signals, detect and translate interrogation signals
Automatically transmit specified air traffic control reply signals, and can transmit special position reply signals and emergency reply signals
With 1090ES ADS-B OUT function, broadcast the position, speed, heading, etc. of the aircraft
With 1090ES ADS-B IN function, can receive ADS-B broadcast messages in the surrounding airspace: such as aircraft position, speed, heading, etc.
ADS-B broadcast messages: aircraft position, speed, heading, etc.
Operating frequency
Transmit frequency: 1090MHz
Receiving frequency: 1030MHz, 1090MHz
Receiving sensitivity
ATC transponder receiving sensitivity: -74±3dBm
ADS-B IN receiving sensitivity: better than -81dBm
Transmitting power: 54±3dBm
Reply mode: M1 mode, M2 mode, MC/A mode, C mode, S mode
ADS-B OUT Broadcast mode: DF17, DF19 (customized)
Altitude coding range: -1000 feet ~ 35000 feet
Surveillance information receiving capacity: can receive and process surveillance information of no less than 80 aircraft
External interface

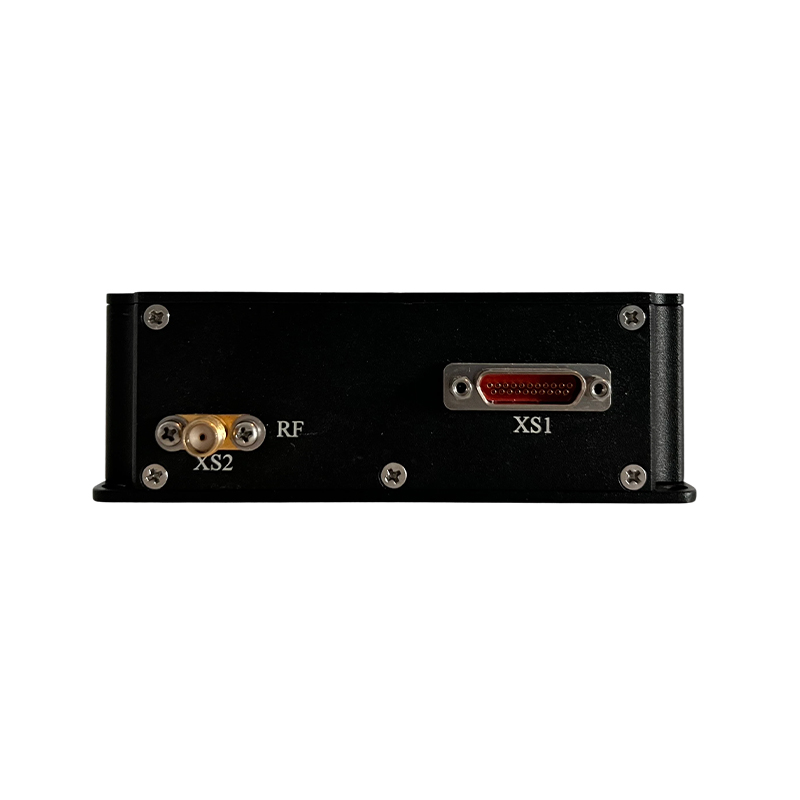

External interface: 1 SMA-K (RF transceiver interface)
1 J30J connector (2 RS422 + 1 28V power supply)
Power supply and power consumption:
Power supply: DC + 28V
Host power consumption: ≤12W
Dimensions and weight:

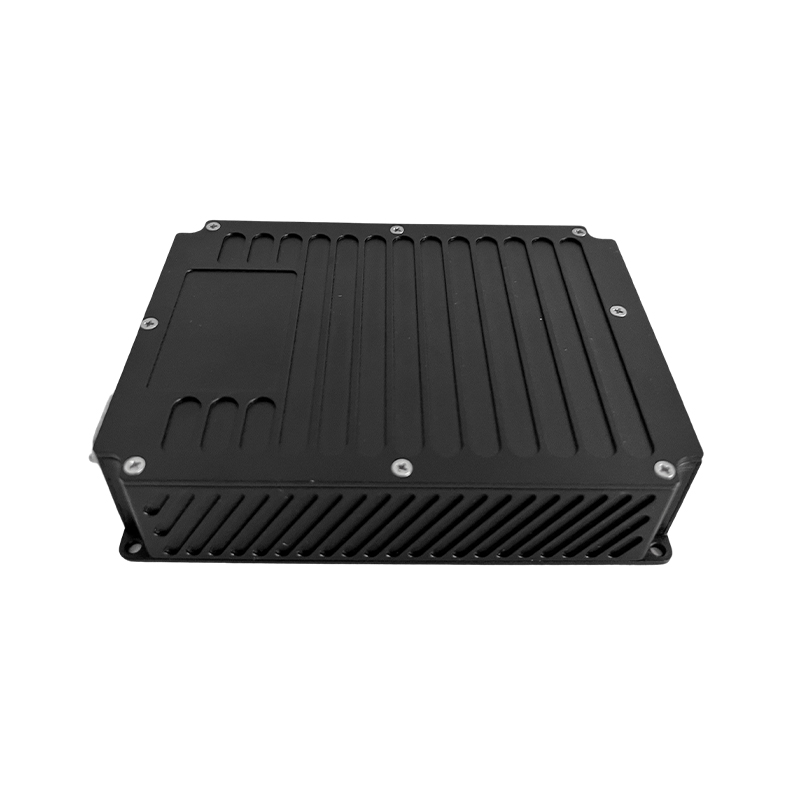

Host size: 145mm*105mm*42mm
Host weight: ≤500g
Application scenarios: medium and large drones, eVTOL aircraft
