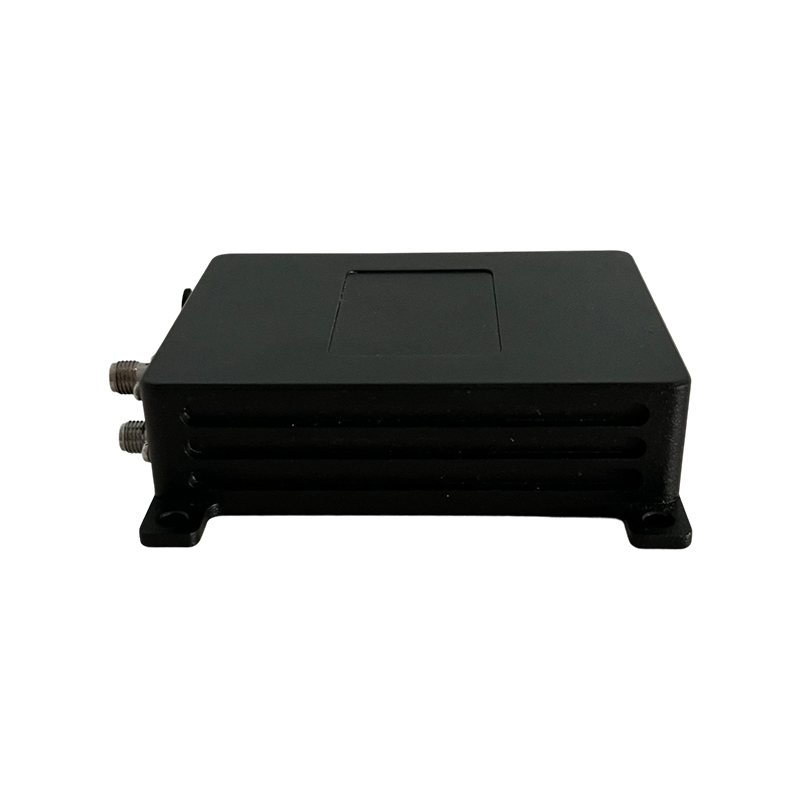

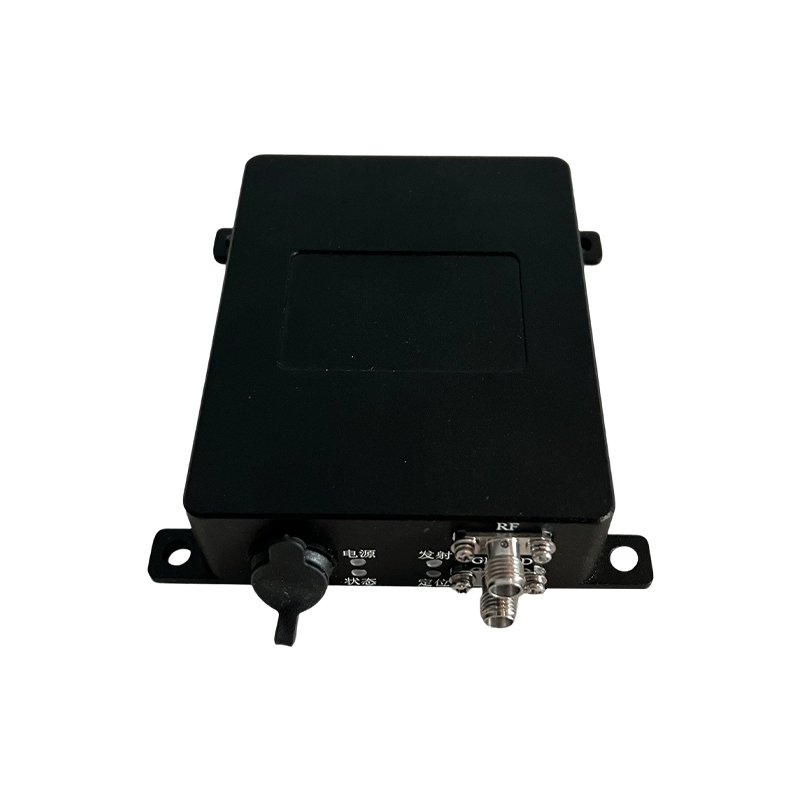

ADS-B Transmitter (Battery, GPS Antenna Optional)
ETS54PTA
The ADS-B transmitter is a small, portable, high-performance ADS-B transmitter carefully designed and developed based on the advanced software radio (SDR) platform. By continuously broadcasting the location information of platforms such as drones or vehicles, it can cooperate with the ground system to help the command terminal accurately grasp the real-time location information of ground vehicles or aerial drone platforms, and achieve functions such as avoiding ground vehicles from invading the runway or avoiding collisions with aerial drones.
This product can be equipped with BD/GPS antenna and battery module to enable the ADS-B transmitter to work autonomously on a mobile platform.
Compliant with DO-260B standard
With 1090ES ADS-B OUT function, it can broadcast the position, speed, heading, etc. of the aircraft
With GPS and Beidou timing capabilities
Transmitting frequency: 1090MHz±100kHz
Transmitting power: ≥100W (optional)
Transmitting message: Compliant with D0-260B
Message type: DF17 or DF18
Identity ID: On-site configuration
24bit ICAO ID: On-site configuration
Operating temperature: -45℃~+80℃
Maximum operating altitude: 50000ft

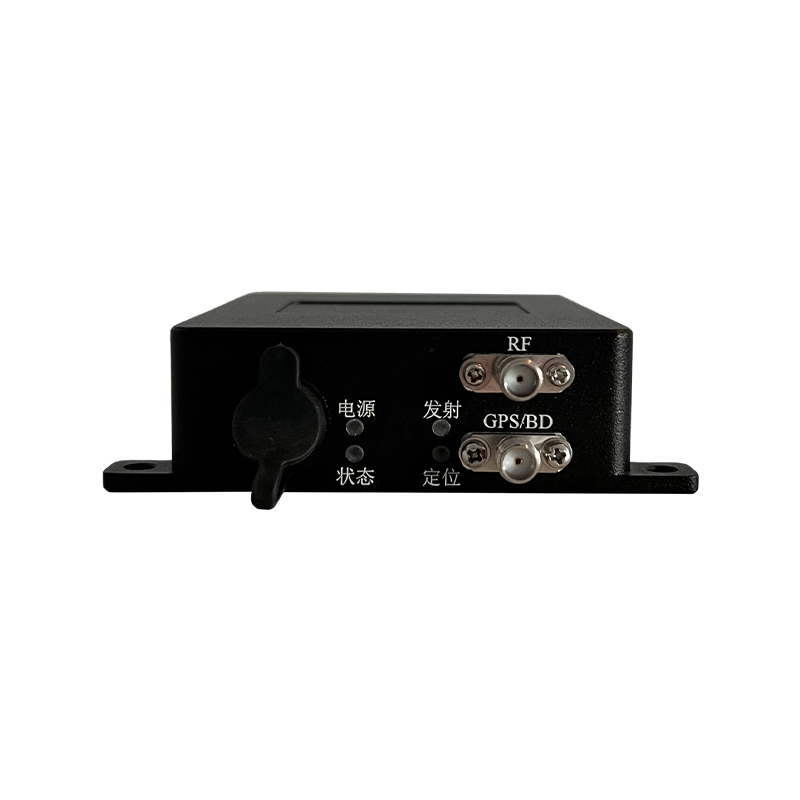

External interface:
Power supply interface: Type-c or RJ303
External data interface: RS422 (J30J)
BD/GPS: Extended external connection
Power supply and power consumption:
Working voltage: DC9V~32V
Power consumption of the whole machine: 2W
Dimensions and weight:
Equipment size: 113*72*30mm
Weight of the whole machine: 300g
Application scenarios: Suitable for small and medium-sized drones, special vehicles at airports
