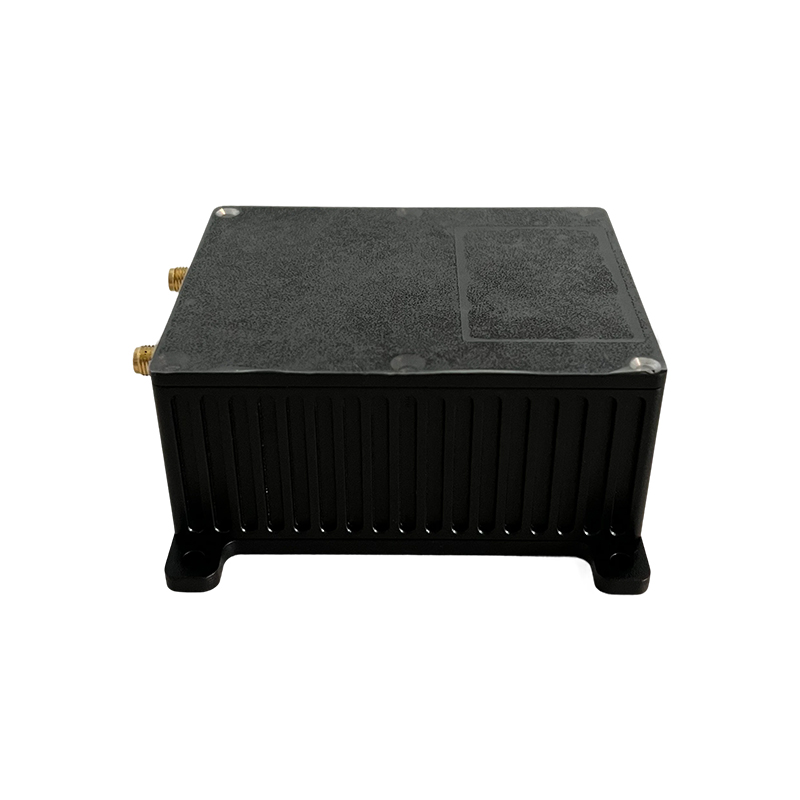

Airborne ADS-B Receiver
ERI54UAB
The airborne ADS-B receiver (ER54UAB) is a detection and processing device for specific signals that is carefully designed and developed based on the advanced software radio (SDR) platform using RF signal direct acquisition technology. It can realize fully automatic identification, demodulation, information restoration and interpretation of ADS-B signals. This product has high receiving sensitivity, long range, large instantaneous dynamic range, and strong anti-interference ability, the device is small in size, light in weight, low in power consumption, and has strong environmental adaptability, and can be applied to various types of unmanned aerial vehicle environments.
It has the ability to receive, demodulate and interpret ADS-B signals
It has the ability to analyze target flight number, nationality, address code, aircraft code, location, altitude and other information
Data distribution function: ADS-B information is transmitted to other payload devices of the drone through the asynchronous RS422 interface
It has power-on self-test, periodic self-test and maintenance self-test functions
Receiving frequency: 1090MHz
Action distance: ≥250km
Receiving sensitivity: ≤-85dBm
Dynamic range: ≥55dB
Anti-burnout power: ≥10W
Decoding accuracy: better than 95%
External interface:
RF interface: 1 input (N-K type)
Data interface: 1 Ethernet interface, 1 RS422 serial port (GJB599 series connector)
Power interface: 1 28V power supply interface (GJB599 series connector)
Power supply and power consumption:
Power supply: 22V~30V DC
Power consumption: 10W
Dimensions and weight:
Dimensions ≤130mm*100mm*55mm (including mounting holes)
Net weight ≤550g
Application scenarios: UAV platform, evtol, etc.
