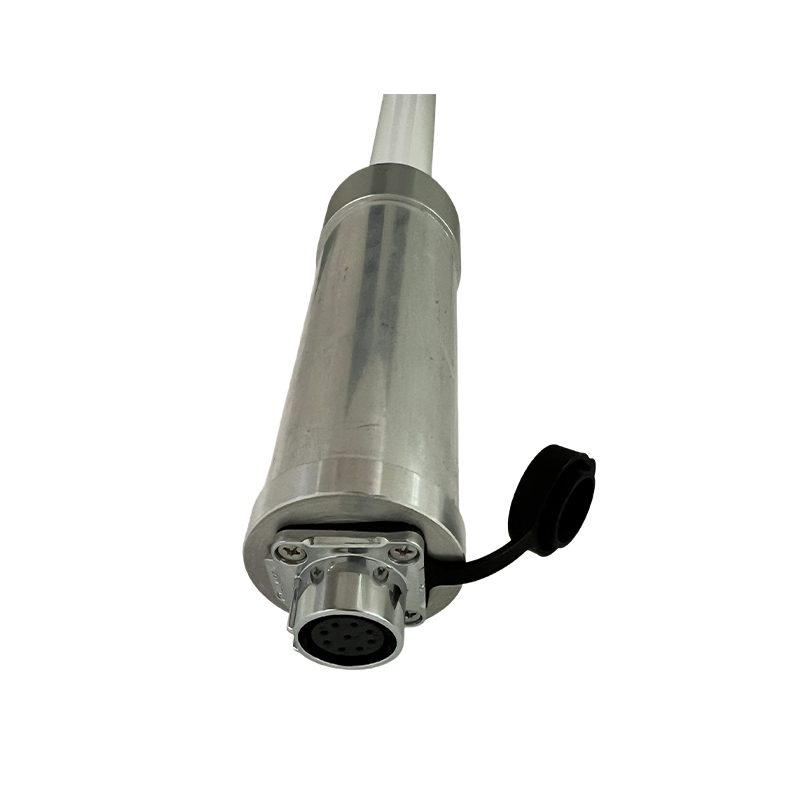

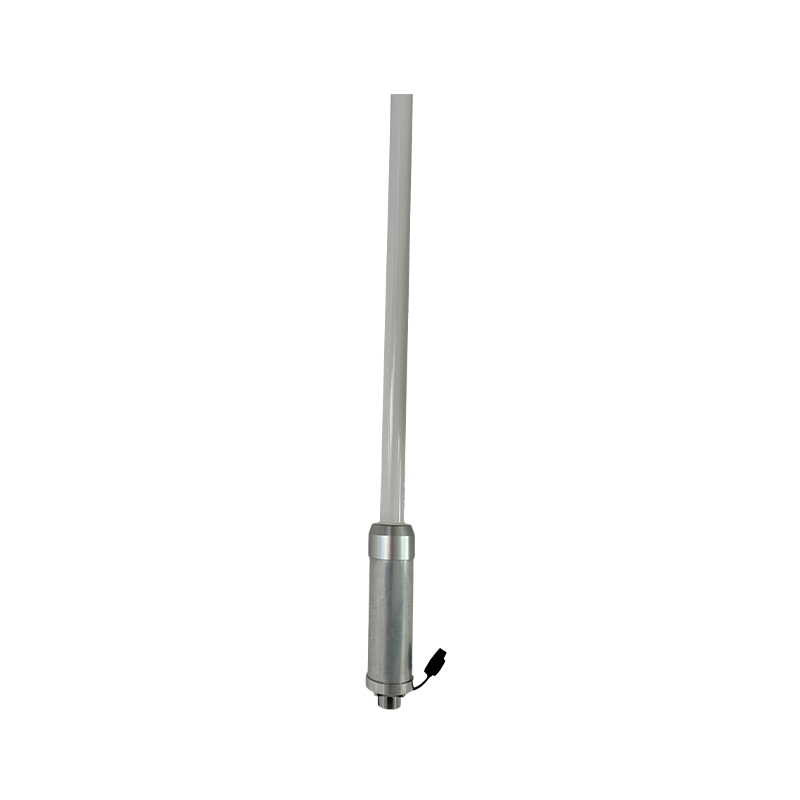

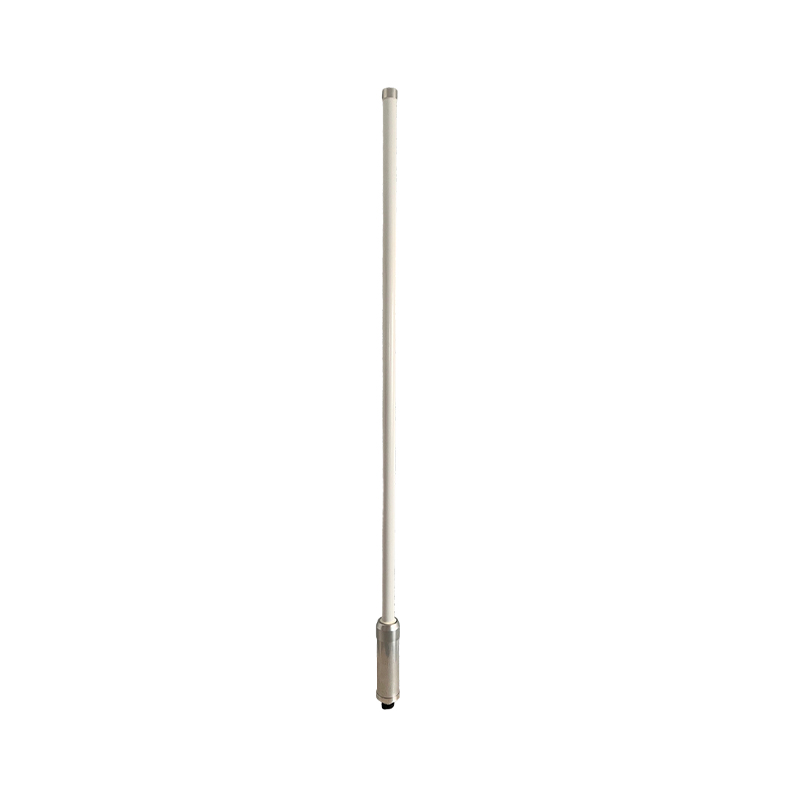

AIS Integrated Receiving Antenna
EDD66PTA
The AIS integrated receiving antenna adopts miniaturized receiving technology and integrates the reception of AIS signals inside the antenna, which can realize efficient detection and reception of AIS signals. This product adopts an integrated design and has IP65 grade waterproof capability. It is particularly suitable for use in scenarios such as seaside or ships, and can monitor surrounding maritime targets.
It has the functions of receiving, demodulating and interpreting AIS signals
It has the function of outputting message information through RS422/RS232 serial port
It has the function of reporting the working status of the equipment
It has the ability to integrate the antenna and the receiving equipment
It has IP65 waterproof function
It has the function of equipment self-test

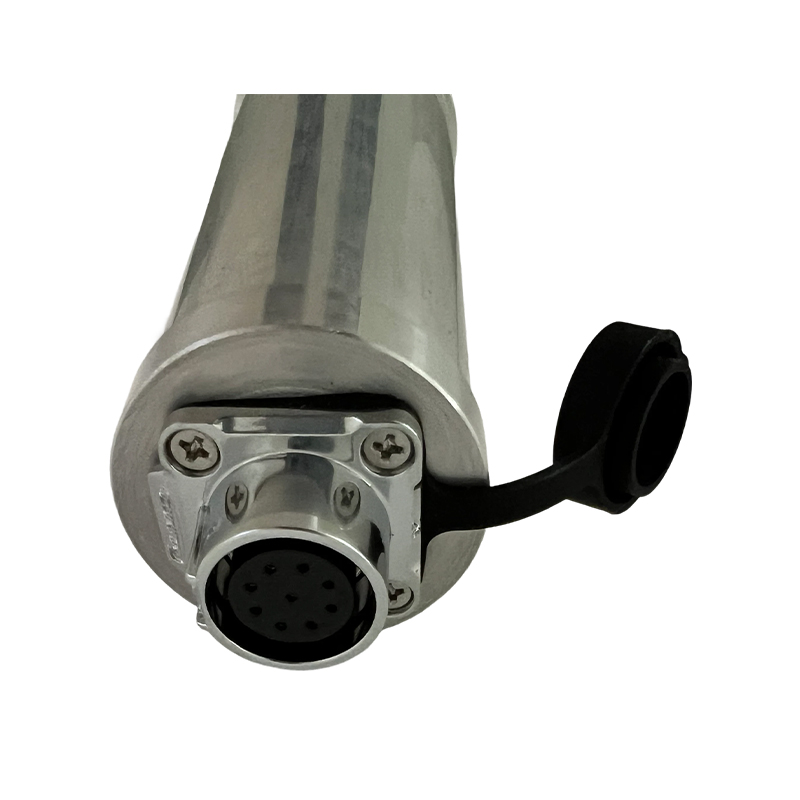

Receiving frequency: 161.975MHz, 162.025MHzSensitivity: ≤-110dBmDynamic range: ≥60dBOperating distance: ≥200kmBit error rate: ≤10%External interface:Serial number | Pin number | Pin Definition |
1 | 1 | 5V+ |
2 | 2 | 5V- |
3 | 3 | RS232_TX |
4 | 4 | RS422_TX_P |
5 | 5 | RS232_RX |
6 | 6 | RS422_TX_N |
7 | 7 | GND |
8 | 8 | GND |
9 | 9 | NC |
