ATC/ADS-B Front-Line Detection Equipment (AIS Optional)
EDD56PTA
ATC/ADS-B front-line detection equipment can simulate the interrogation signals of IFF signal modes A/C/S/1/2 and ADS-B IN and ADS-B OUT to test the functions and indicators of air traffic control transponders and ADS-B transceivers. The product can also simulate the transmission of AIS signals in various message formats and simulate ship targets at ground stations to test the functions and performance of AIS receivers in inland areas.
It has the functions of transmitting IFF interrogation signal, receiving reply signal, identifying and detecting
It has the function of measuring the transmit power of the transponder
It has the function of testing the sidelobe suppression of the transponder, and the sidelobe suppression degree can be set
It has the function of ADS-B IN/OUT
It has the function of wired and wireless testing
It has the function of measuring the transmission pulse width and pulse interval of the reply signal
It has the function of measuring the time interval of the frame pulse F1-F2 of the reply signal
It has the function of measuring the reply delay and distance measurement of the reply signal
It has the function of decoding the reply signal, which can display the identity and height information of the decoded target
It has the function of generating a work log, which can be exported or stored and queried locally
It has the function of displaying the equipment status and self-testing the equipment at power-on
It has the function of local and remote control
It has the function of battery self-sustaining operation
Operating frequency: 1030MHz, 1090MHz
Test signal types: Mode 1, 2, 3/A, C, S and ADS-B
S mode test types: UF0, UF4, UF5, UF16
ADS-B OUT send message type: DF17, DF18 and DF19
ADS-B IN receive message type: DF17, DF18 and DF19
Pulse width measurement error: ±0.05us
Pulse interval measurement error: ±0.05us
Inquiry signal output power range: -85 dBm~ -10dBm (wired)
-35dBm~ 37dBm (wireless)
Response signal receiving power range: 30dBm ~57dBm (wired connection)
Sidelobe suppression setting range: 0~20dB
Inquiry signal maximum transmission rate: 2000 times/second

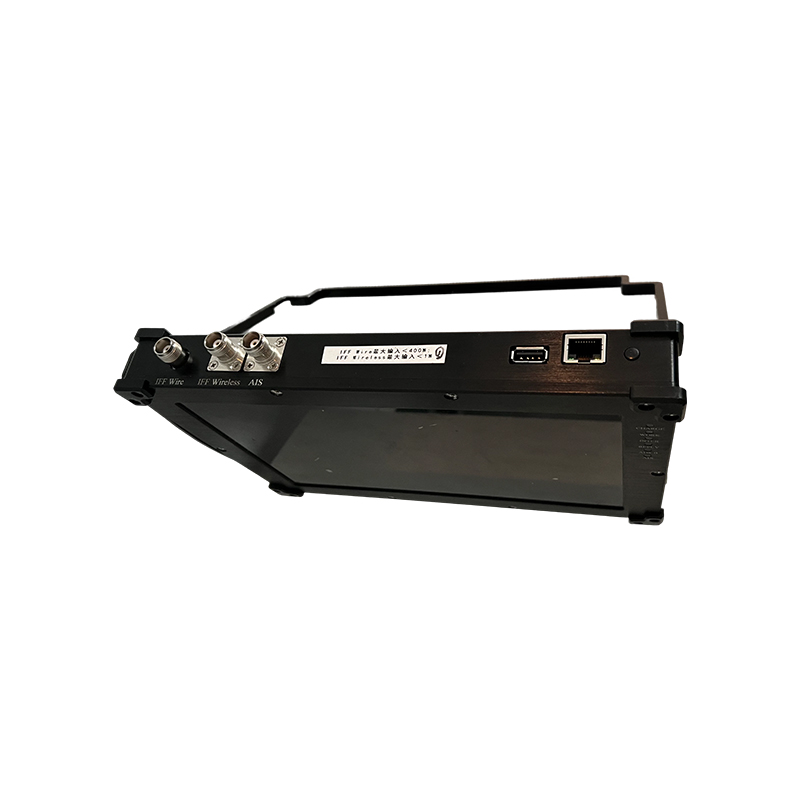

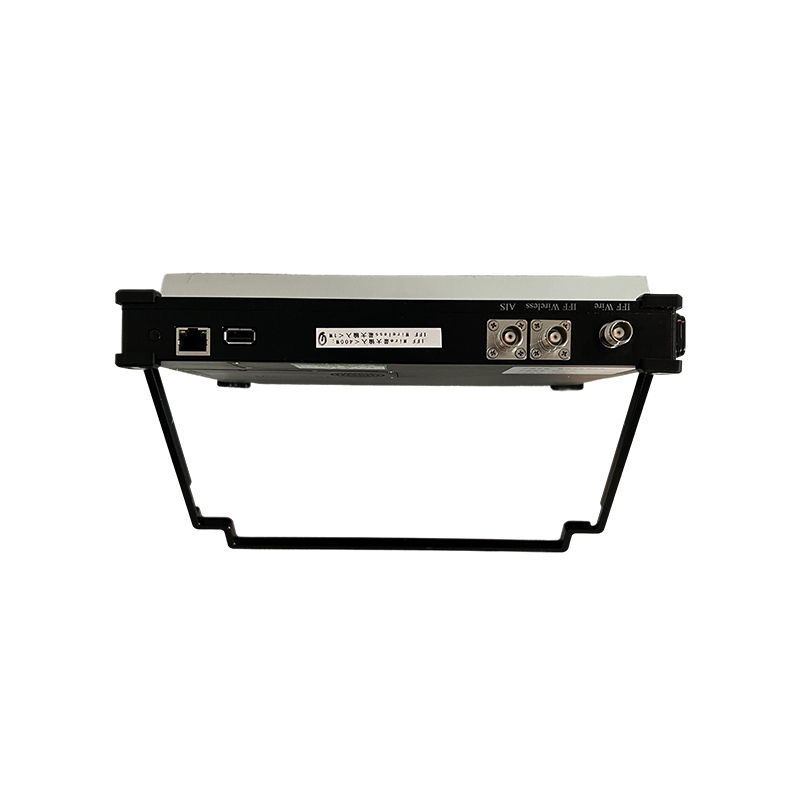

External interface:
Wired connection RF input and output interface: TNC
Wireless radiation RF input and output interface: TNC
Network interface: RJ45 Gigabit Ethernet
Power interface: DC-19V
Power supply and power consumption:
Power interface: DC-19V
Total power consumption: 10W
Dimensions and weight:

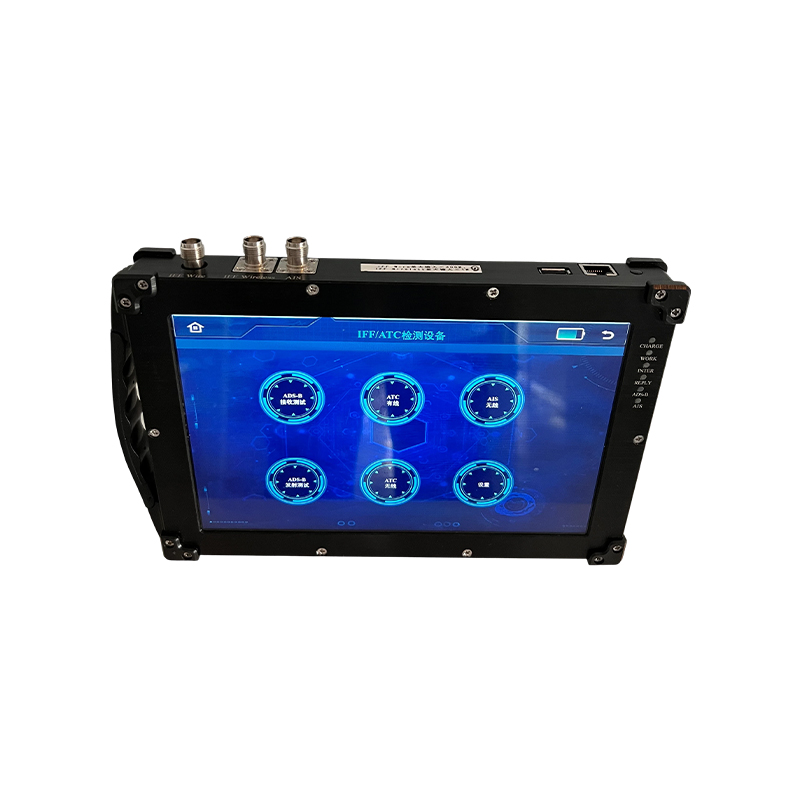

The whole machine adopts a reinforced tablet computer structure design and is equipped with a 10-inch LCD screen with touch function
Total size: ≤270mm×185mm×40mm
Total weight: ≤2kg
Application scenarios: ground stations, maintenance stations, etc. of aircraft
