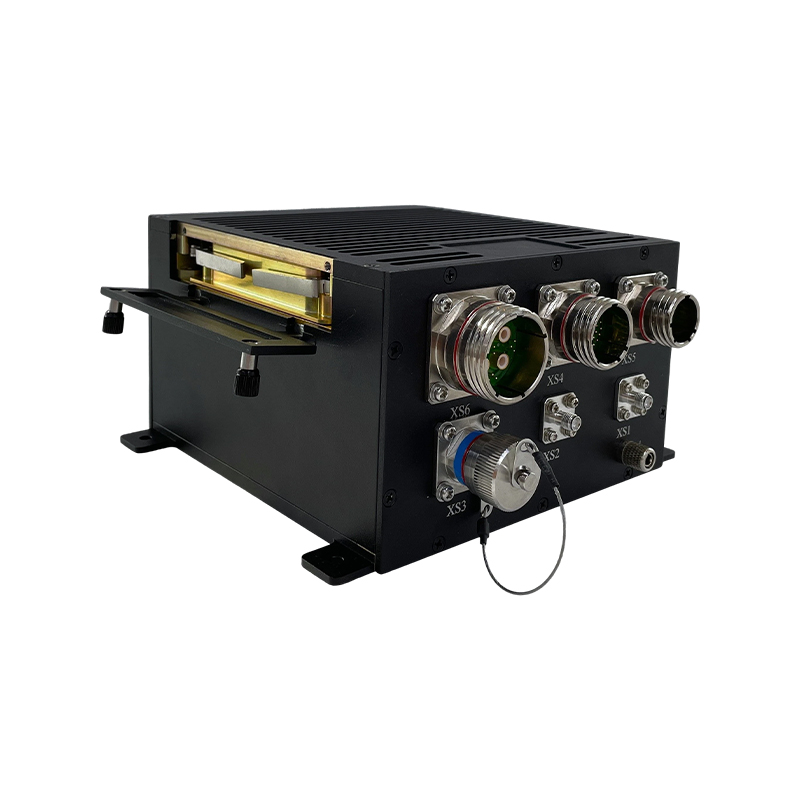

Mission Data Recorder
EDR03UAC
As a key device in the UAV mission system, the mission data recorder is mainly used to record the data information (images, videos, SAR radar images, detection data, etc.) acquired by multiple sensors on the UAV in real time. At the same time, the required output compressed data is used for real-time transmission, and the stored original data can also be transmitted in real time. After the UAV returns to the field, the mission data can be quickly unloaded by plugging and unplugging the storage module.
It has a full HD 1080P digital video recording interface, supports SMPTE292M, frame rate 25/30fps, and adopts H.265 compression storage
It has a synchronous 422 data recording interface
It has an optical fiber data recording interface
It has an Ethernet data recording interface
It has a synchronous 422 data output interface, the output bandwidth is configurable, and the maximum support is 8Mbps
It has 2 groups of functions to divide 1 RS422 differential pair into 3 RS422 differential pair outputs
It has the function of dividing 1 RS422 differential pair into 4 RS422 differential pair outputs
It has a 5-way differential pair waveform output drive function
It has the function of encrypting the stored data
It has the function of quickly unloading data through the Gigabit network

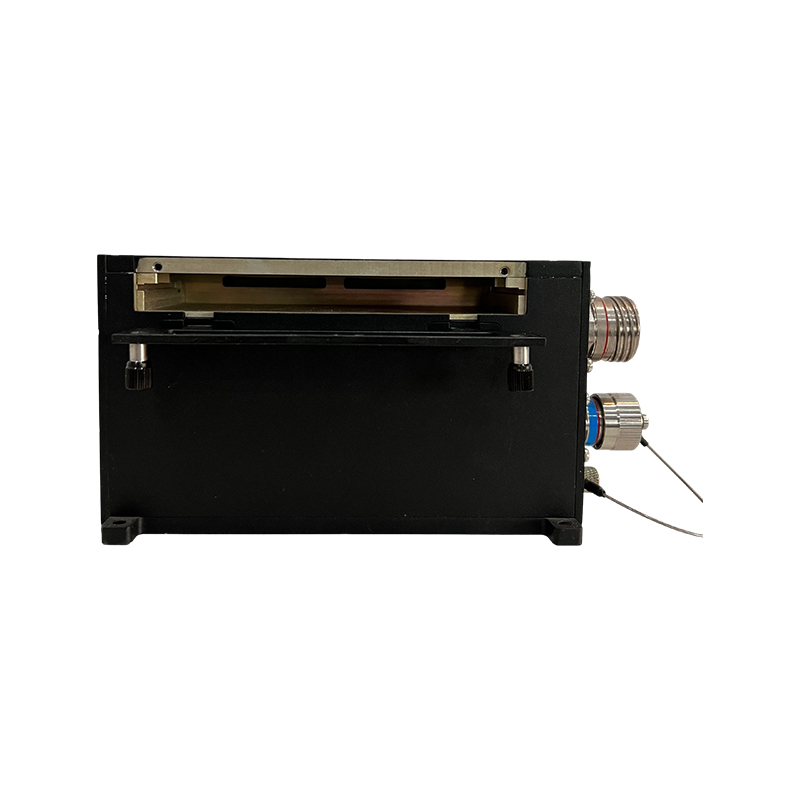

It has the function of quickly unloading data by unplugging the storage hard disk
The mission data recorder can erase the storage hard disk data according to the erase instruction
Recording capacity: ≥8TB (nominal value)
Continuous write rate: ≥300MB
Hard disk plug-in and pull-out times: not less than 2000 times.
Data erasure time: ≤1min.

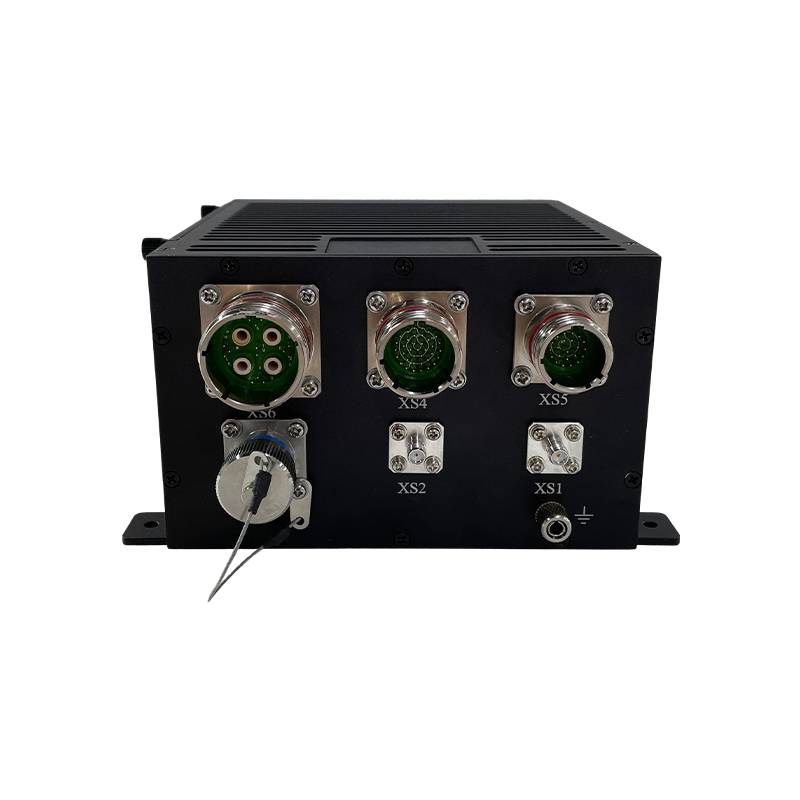

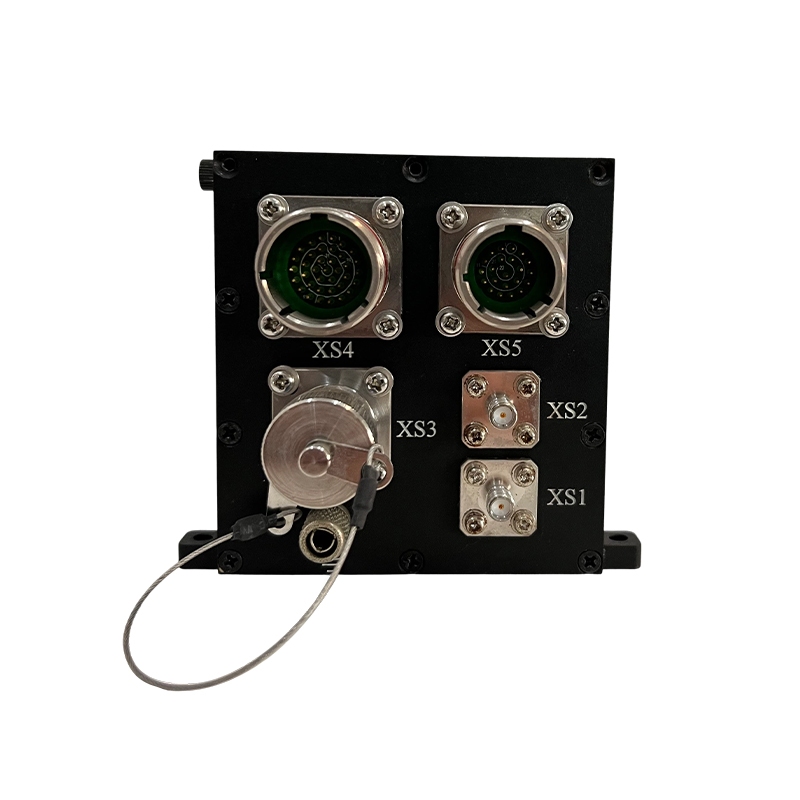

External interface
Communication interface: 1-channel RS422 bidirectional signal transmission
Video input interface: 1-channel HD-SDI
Data input interface: 2-channel synchronous 422, 2-channel optical fiber, 4-channel Ethernet, 1-channel Camera Link
Data output interface: 4-channel synchronous 422
Differential signal input interface: 3-channel RS422 differential pair
Differential signal output interface: 15-channel RS422 differential pair
Power supply and power consumption
Rated voltage: 28V DC
Power consumption: ≤50W.

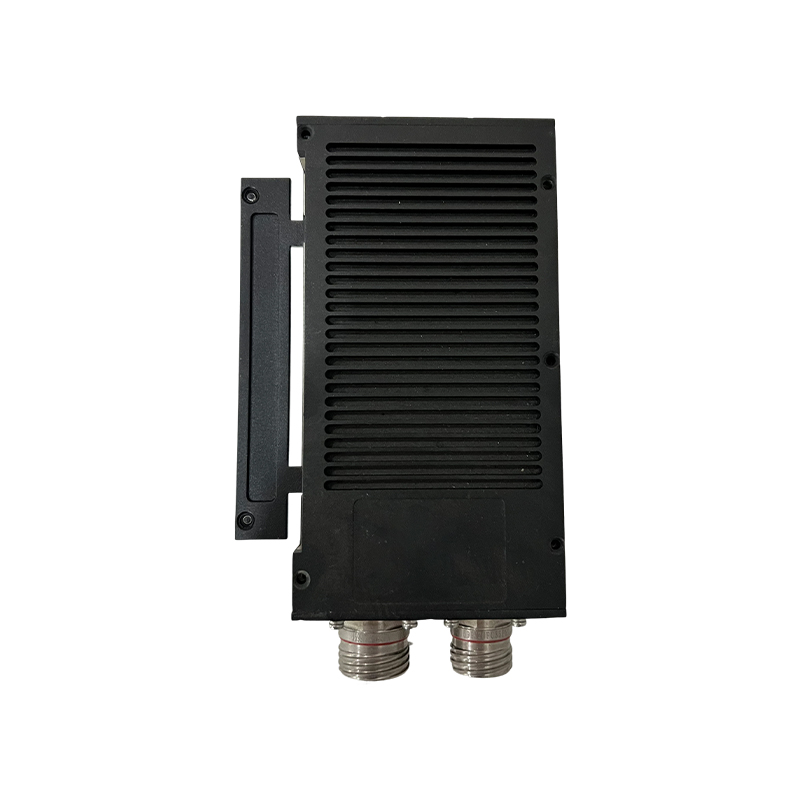

Dimensions and weight
Dimensions: ≤ 200mm×160mm×205mm
Machine weight: ≤ 2.5kg
Application scenarios: Suitable for large and medium-sized drones, ships, cars and other mobile platforms
