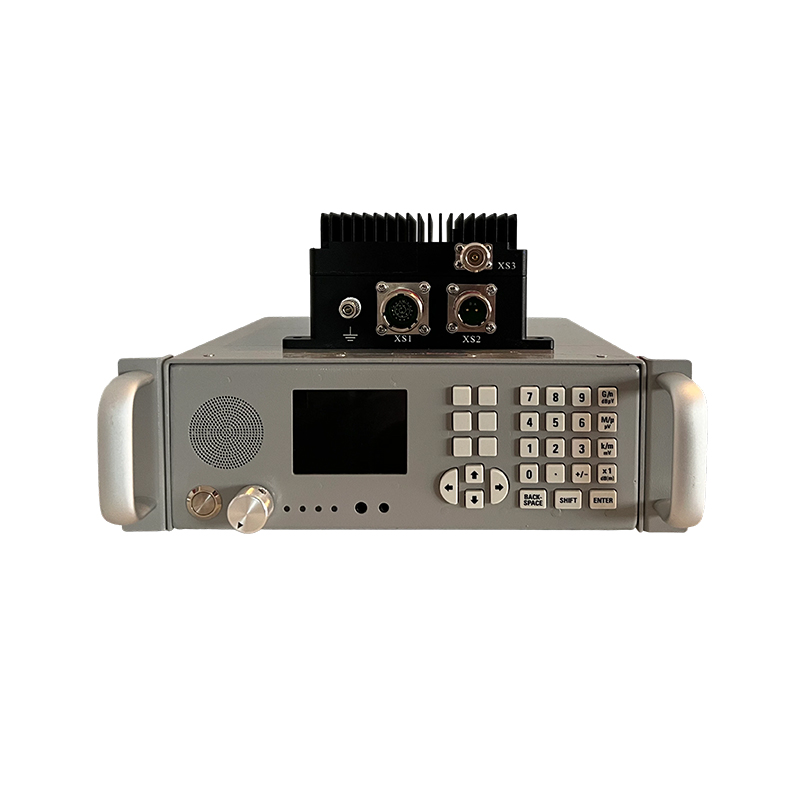

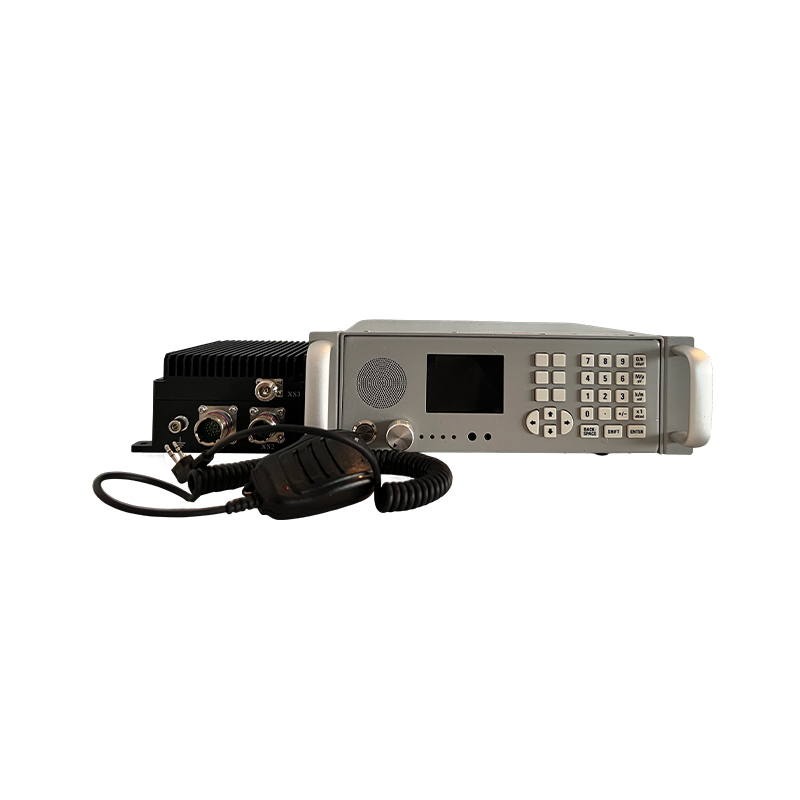

Drone Voice Radio
ETR20UAA
The airborne voice radio uses advanced software radio (SDR) technology to achieve AM voice communication between the UAV ground control station and the air traffic control tower or other manned platforms through the UAV control link. This voice radio uses the most advanced AI intelligent noise reduction filtering technology, which can achieve good voice reception under low signal-to-noise ratio conditions.
It has the functions of voice code transmission and conversion
It has both conventional squelch and AI squelch
It has self-detection function
It has emergency mode
Frequency: 118MHz~136MHz
Frequency interval: 1kHz
Modulation mode: AM
Number of preset channels: 100
Frequency error: ≤±fc×10-6 (fc is the RF carrier frequency)
Voice code speech: Digital voice rate 1.2kbps, 1.8kbps, 2.4kbps rate optional
Output power: 1W, 5W, 10W, 15W, 20W (5 gears optional)
Communication distance: Within the line of sight, the transmission distance is not less than 150km
Receiver sensitivity: AM≤-103.5dBm
External interface:
Communication interface: RS422 serial port, aviation socket
Power interface: aviation socket
Power supply and power consumption:
Onboard equipment power supply: DC 28V
Ground equipment power supply: ~220V
Onboard equipment power consumption: equipment transmission ≤100W, reception ≤15W
Ground equipment power consumption: ≤ 15W
Dimensions and weight:

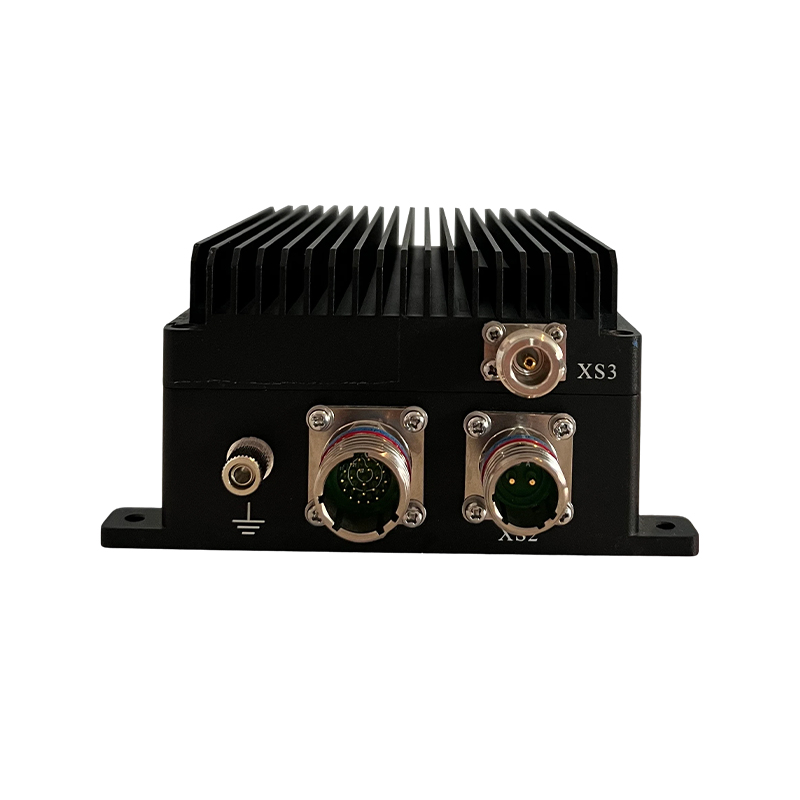

Onboard equipment dimensions: 150mm*160mm*74.5mm (including mounting holes, excluding connectors)

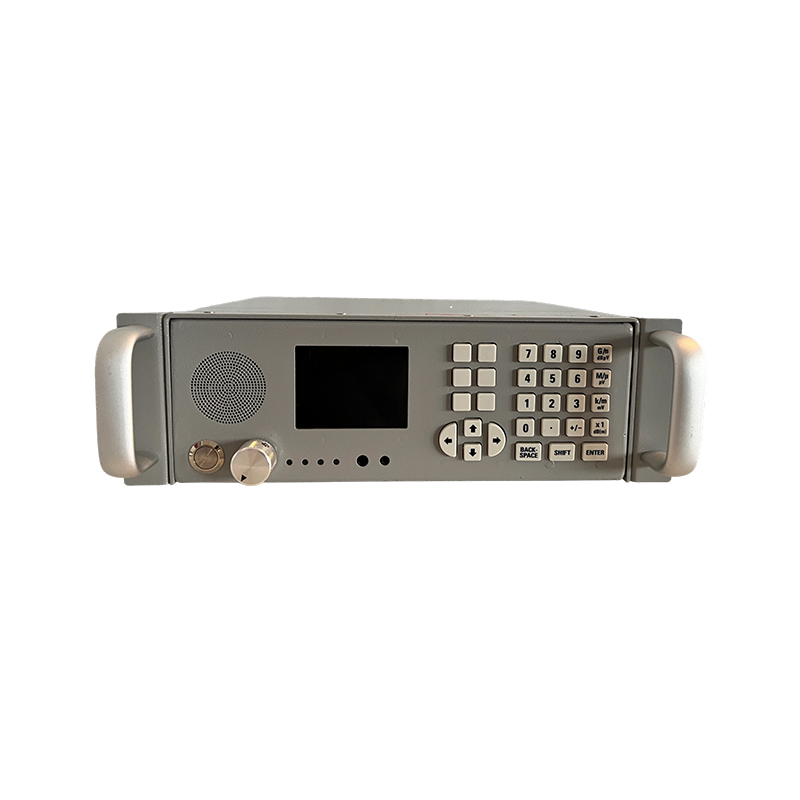

Ground equipment dimensions: 286.9mm*210mm*88.1mm (including left and right mounting ears, excluding connector size)
Onboard equipment weight: ≤1.6 kg
Ground equipment weight: ≤2.5 kg
Application scenarios: Suitable for medium and large UAV platforms, etc.
