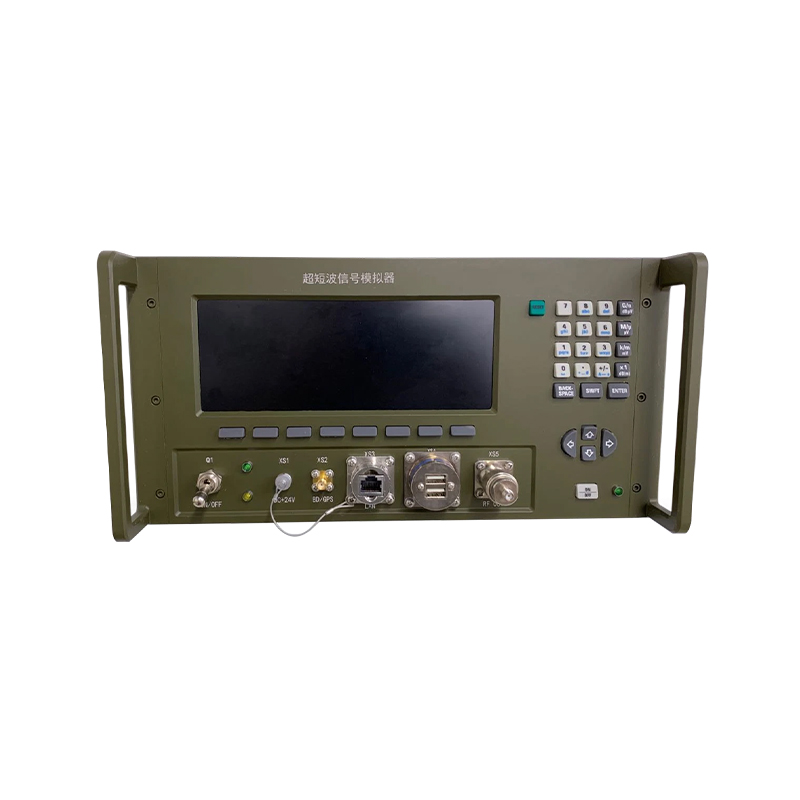

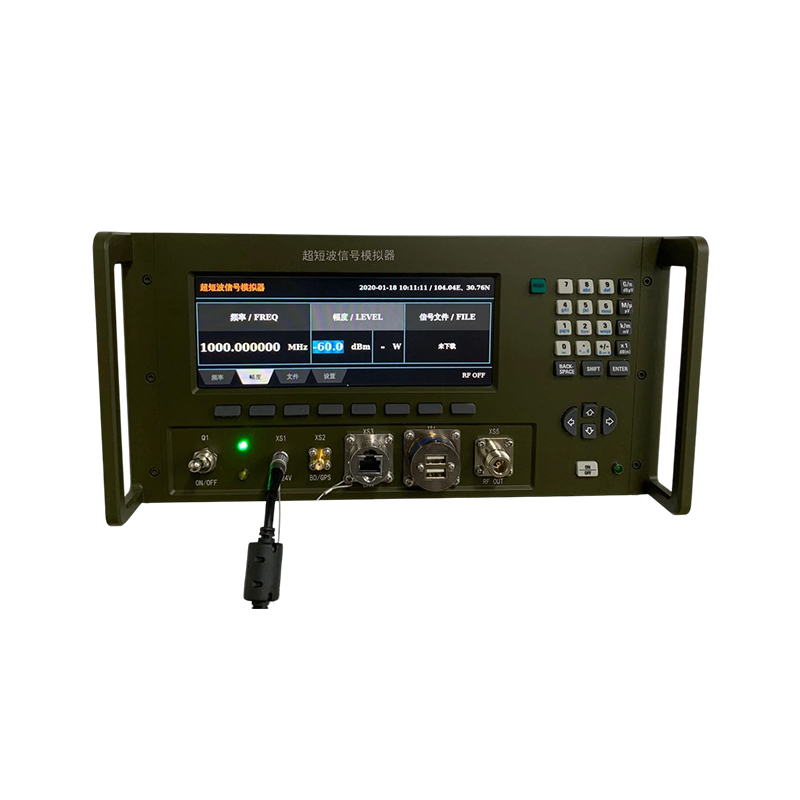

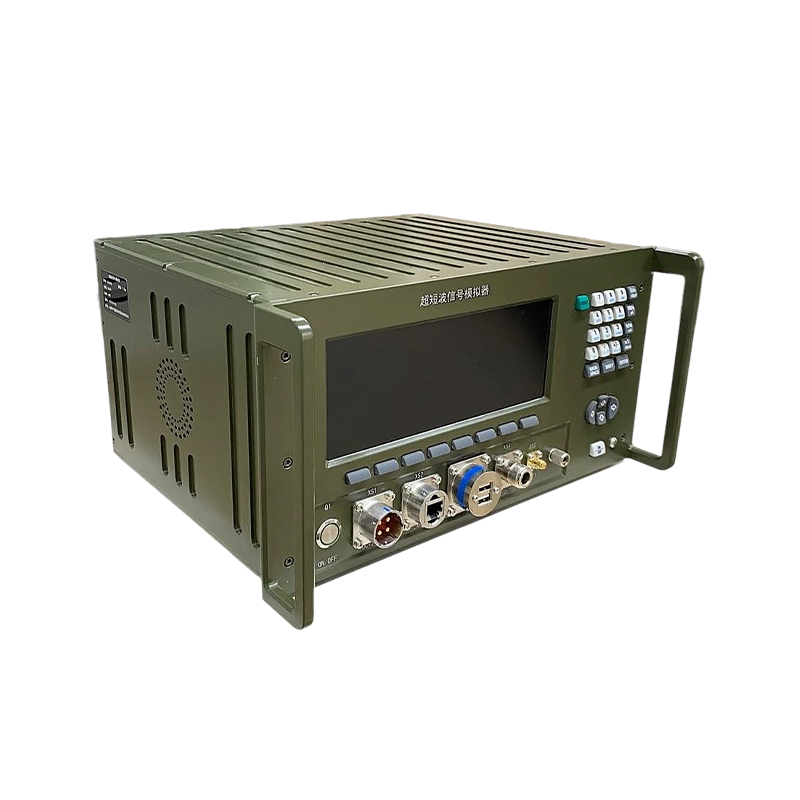

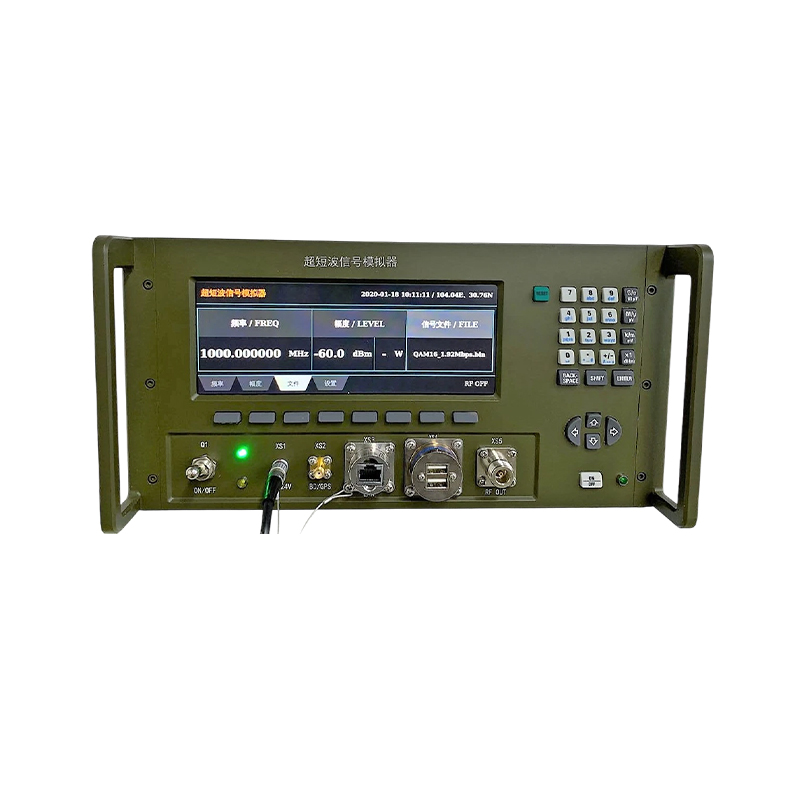

Ultra-Short Wave Communication Analog Signal Source (3GHz)
ESS02VHA
The ultra-short wave signal simulation source is carefully designed and developed based on the advanced software radio (SDR) platform. It can output RF signals or user real-sampled signals, analog data signals, etc. in the 30MHz~3000MHz frequency band in various systems or modulation modes through wired injection or wireless radiation. This product has the characteristics of miniaturization, low power consumption, portability, simple operation, long standby time, flexible and variable signal settings, etc. The product is powerful and has excellent performance: the instantaneous maximum output signal bandwidth is 250MHz, and it has a built-in 10W continuous wave broadband power amplifier, which can meet the needs of ultra-short wave RF signals in various formats of analog wired output or wireless radiation.
It has the ability to quickly transmit the locally preset ultra-short wave signal
It has the ability to playback and output the user's actual data or simulation data
It has the ability to expand, download and store the local preset signal samples
It has the ability to radiate wireless open-circuit broadband
It has the ability to adjust the radiation power
It has the ability to control the local and remote control
It has the ability to support battery power supply
Working frequency band 30MHz～3000MHz
Signal types Conventional signals (CW, AM, FM, 2FSK, 4FSK, BPSK, QPSK, π/4DQPSK, 8PSK, 16QAM, 64QAM, etc.)
Frequency hopping signals (any hopping speed, any hopping point)
Specific signals (Link4A, Link11, Link16, etc.)
Instantaneous transmission bandwidth ≥ 250MHz
Single sample file data capacity ≥ 4GB
Sample file storage capacity ≥ 64GB
Frequency step 1kHz
Maximum output power ≥ 5W
Signal power control range ≥ 60dB
Signal power control step 1dB
Battery self-sustaining working time ≥ 2 hours
External interface:
RF interface 1 output (N-K type)
Power interface 1 +24V input (aviation socket)
USB interface 2 standard USB (aviation socket)
Network interface 1 RJ45 (aviation socket)
Power supply and power consumption:
Power supply: ~220V
Power consumption: 40W
Dimensions and weight:
Dimensions 278mm*186.5mm*144mm
Net weight <5kg
Application scenario: dedicated or specific signal source usage scenario
