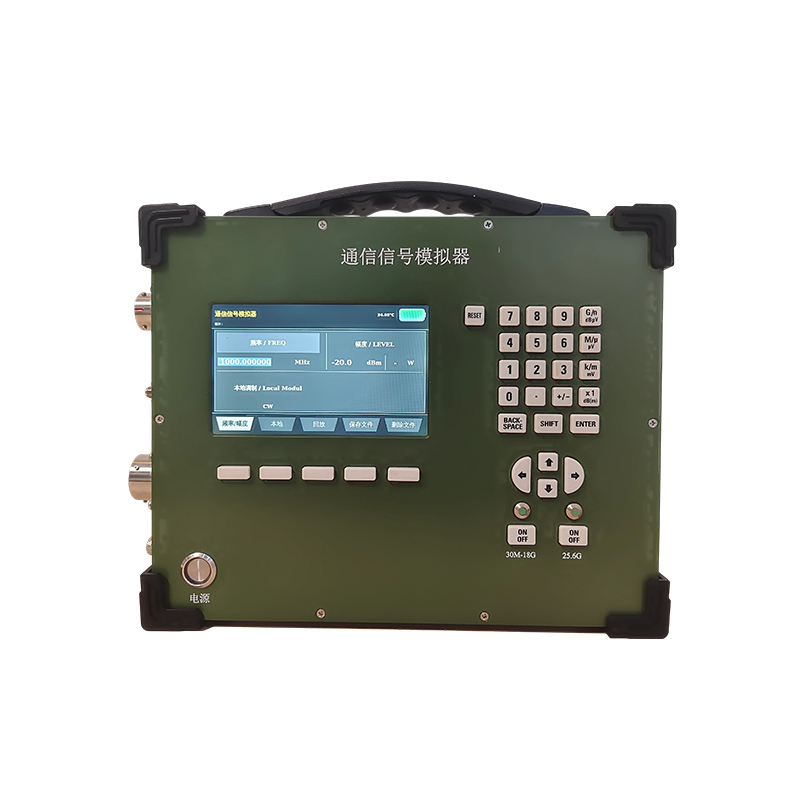

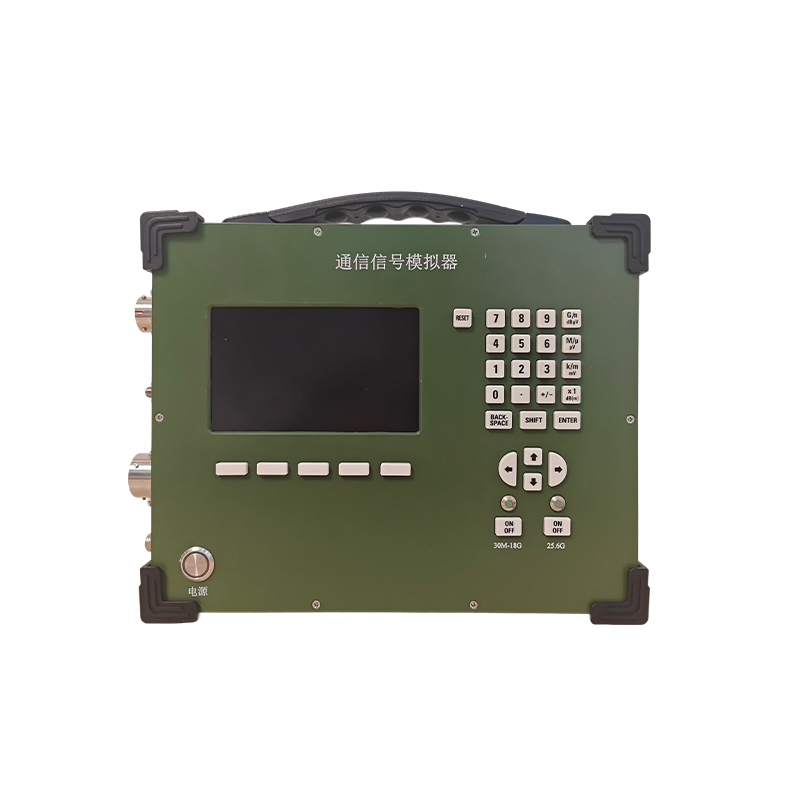

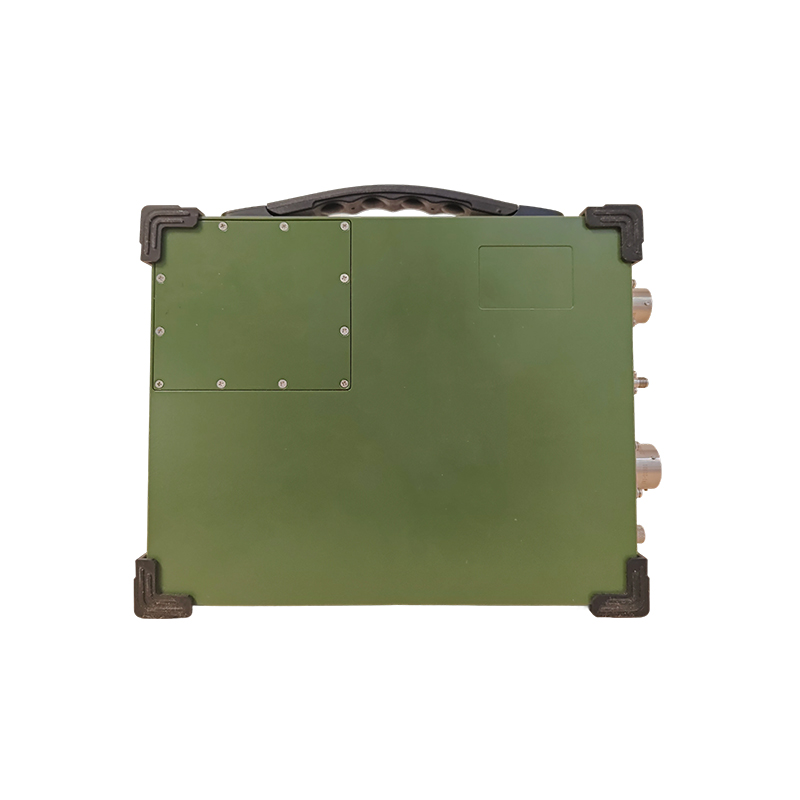

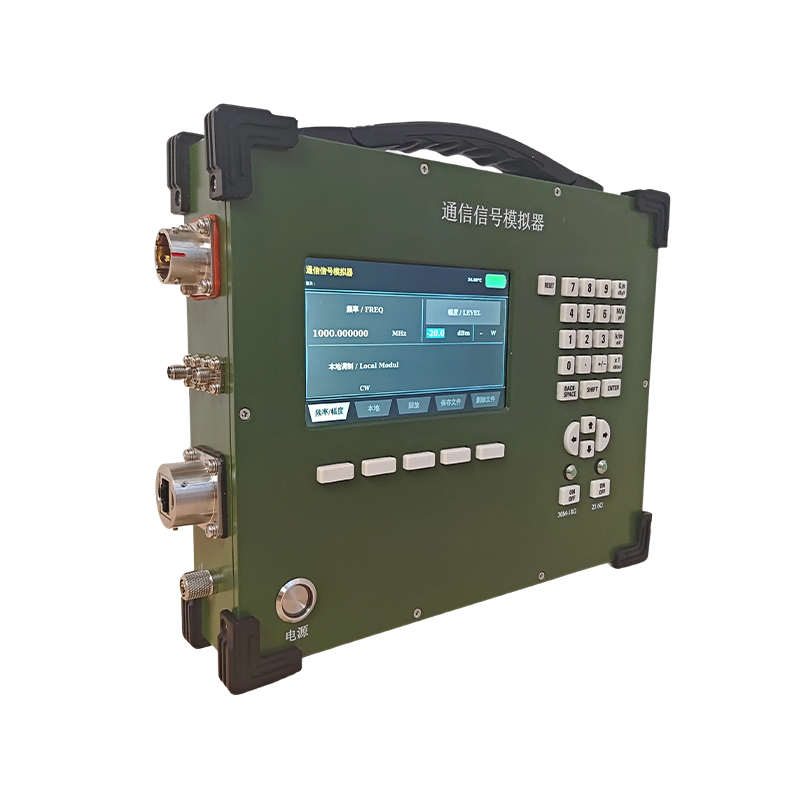

Communication Analog Signal Source (6GHz, 18GHz)
ESS07PTC
The communication signal simulator is carefully designed and developed based on the advanced software radio (SDR) platform. It can output RF signals of various systems or modulation methods in the frequency band of 30MHz~6GHz (expandable to 18GHz) through wired injection or wireless radiation. This product has the characteristics of miniaturization, low power consumption, portability, simple operation, long standby time, and flexible and variable signal settings.
It has the ability to quickly transmit the locally preset ultra-short wave signal
It has the ability to playback and output the user's actual data or simulation data
It has the ability to expand, download and store the local preset signal samples
It has the ability to radiate wireless open-circuit broadband
It has the ability to adjust the radiation power
It has the ability to control the local and remote control
It has the ability to support battery power supply
The main parameters such as signal frequency, modulation type, symbol rate, level, etc. are adjustable
Frequency range: 30MHz~6GHz (expandable to 18GHz)
Signal modulation type: CW, AM, FM, 2FSK, 4FSK, BPSK, QPSK, π/4DQPSK, 8PSK, 16QAM
Digital modulation signal symbol rate range: 1ksps~10Msps
Frequency accuracy: better than 2ppm
Signal type: conventional communication signal, frequency hopping signal, pulse signal, etc.
It has the function of arbitrary waveform playback, imports arbitrary waveform signal files, simulates the source to play the output signal waveform in real time, and radiates wirelessly through the antenna
Controllable attenuation: not less than 20dB
Signal radiation power: not less than 20dBm

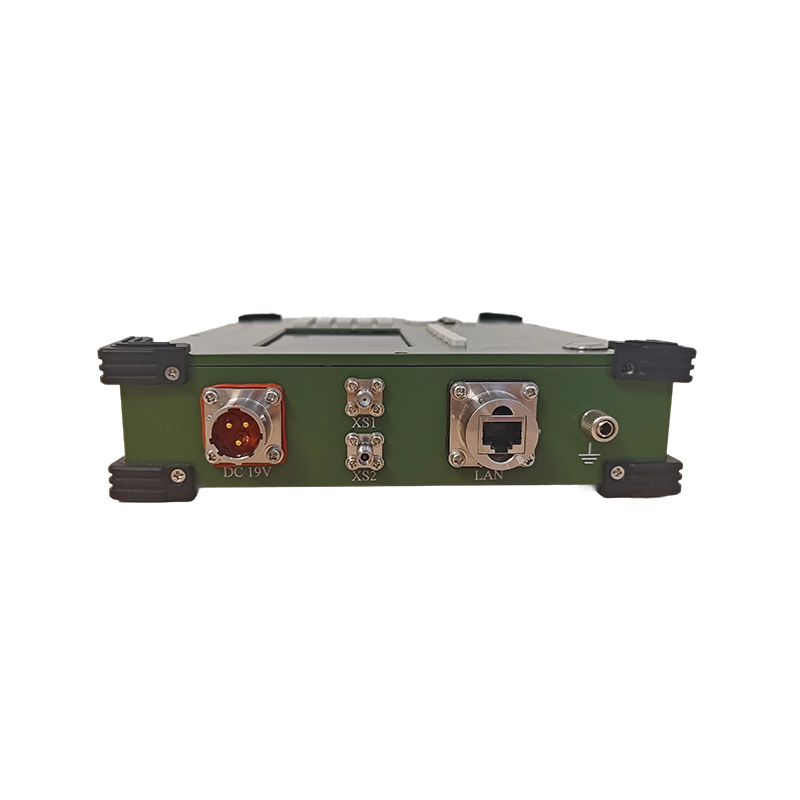

External interface:
RF interface: N type
Communication interface: RJ45 network port
Power interface: aviation socket
Power supply and power consumption:

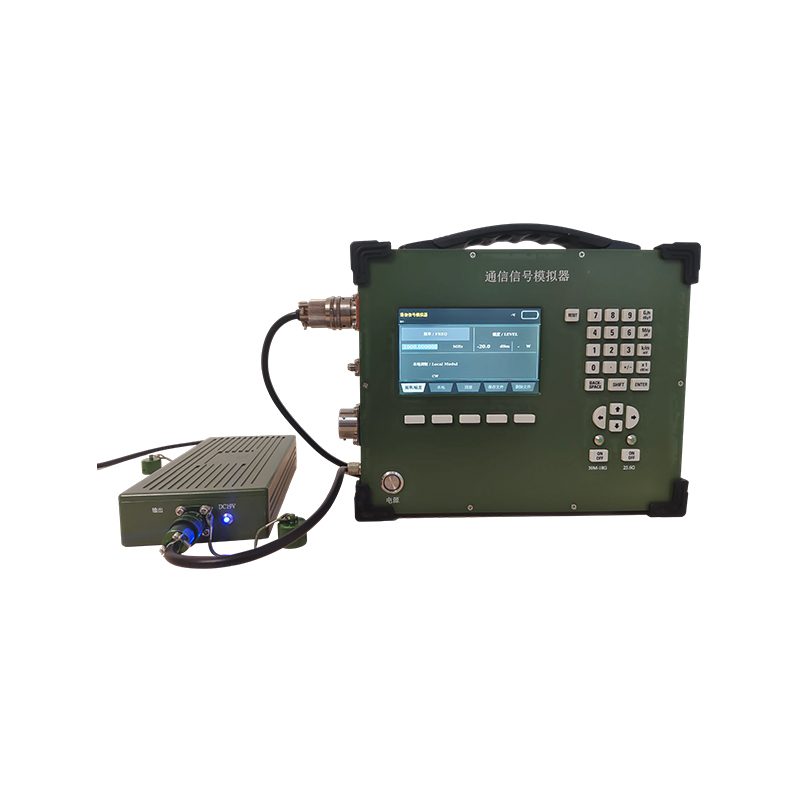

Supports two power supply modes: AC~220V and battery power supply
Built-in battery power supply (not less than 1 hour under normal temperature conditions)
Size and weight:
Weight: less than 15kg (excluding antenna, cable, tripod, charger and other accessories)
Application scenario: dedicated or specific signal source usage scenario
