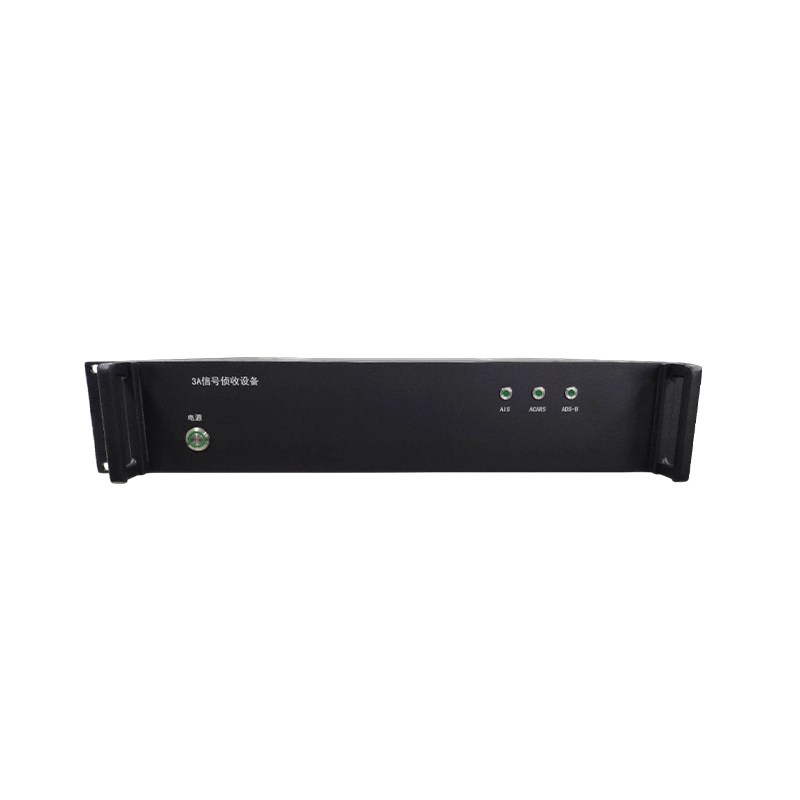

3A Signal Receiving And Processing Equipment
ERI65DKB
The AIS/ACARS/ADS-B integrated receiver (ERI65DKB) adopts advanced software defined radio (SDR) technology, has excellent performance indicators and good expansion capabilities, can realize real-time reception and interpretation of AIS, ACARS and ADS-B signals, efficiently complete the detection of surrounding ships and aircraft targets, and output the received ship and aircraft information to the display and control software of the all-in-one machine for target list and monitoring display, realizing the recognition and monitoring capabilities of surrounding sea and air targets.
It has the ability to receive, demodulate and interpret AIS, ACARS and ADS-B signals
It has the ability to process information and can process and analyze dynamic information such as target location and speed, and the ability to process and analyze information such as the ship name, ship type and ship size of the target
It has the ability to analyze information such as the target flight number, nationality, address code, aircraft code, location and altitude
It can automatically associate and fuse different messages of the same target (aircraft address code)
It has the function of synchronizing and associating data lists with target monitoring displays
It has the function of target alarm, and the alarm conditions can be set, including target appearance/disappearance alarm, regional alarm, target parameter alarm, etc.
It has the function of Beidou/GPS self-positioning, and all types of received data should include the device receiving location information
It has the function of Beidou/GPS timing
It has the device log, and the device can record the key internal and external operations in operation
AIS signal receiving frequency: 161.975MHz, 162.025MHz
AIS signal receiving sensitivity: ≤-107dBm
AIS signal receiving dynamic range ≥70dB
AIS signal decoding accuracy: better than 75% (at receiving sensitivity)
ACARS signal receiving frequency: 118MHz~137MHz
ACARS signal receiving channels: ≥4 (default operating frequencies are 131.45MHz, 131.55MHz, 127.275MHz, 133.025MHz)
ACARS signal receiving sensitivity: ≤-1107dBm
ACARS signal receiving dynamic range: ≥70dB
ADS-B signal receiving frequency: 1090MHz
ADS-B signal receiving sensitivity: ≤ -85Bm
ADS-B signal receiving dynamic range: ≥50dB
ADS-B signal decoding accuracy: better than 80% (at receiving sensitivity)
Anti-burnout power: ≥10W (continuous wave) (design guarantee)

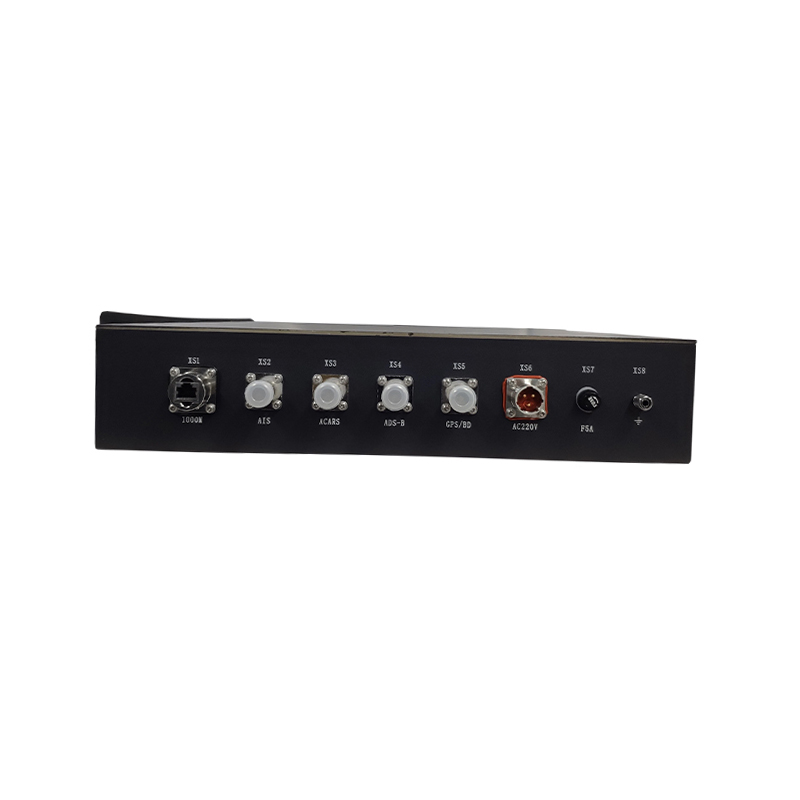

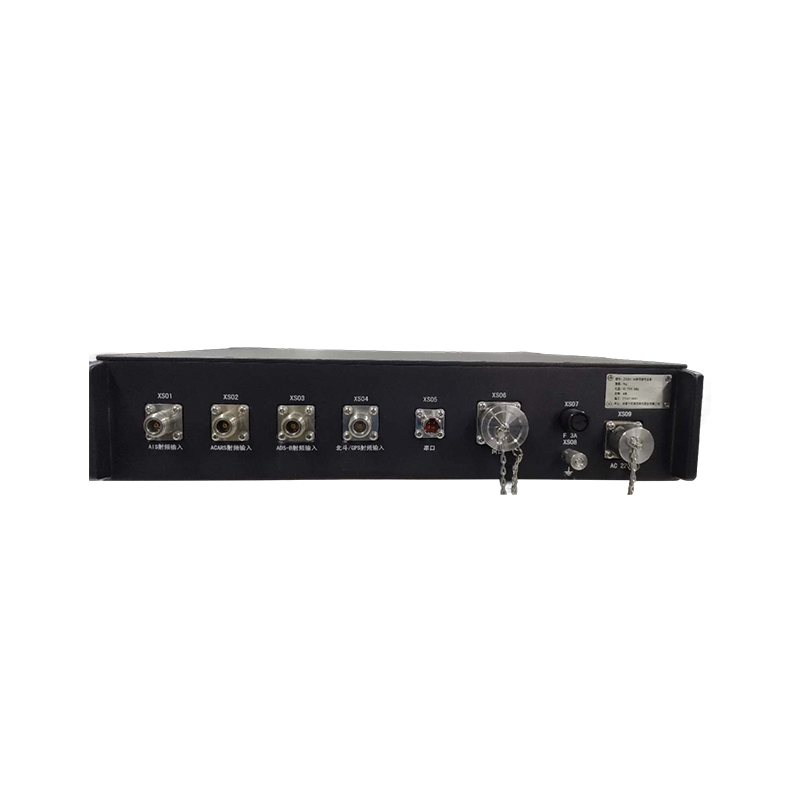

External interface:
RF signal input: 2 N-50K
Power interface: aviation socket
Beidou/GPS signal input interface: TNC
Control and data interface: Gigabit network port (aviation socket)
Power supply and power consumption:
Power consumption of the whole machine: ≤90W
Battery of the whole machine: ≥9600mAh
Self-sustained power supply time of the whole machine: ≥2h.
Dimensions and weight:
The whole machine adopts a portable design, and the host includes a touch LCD display
Volume of the whole machine: ≤412mm*291mm*98mm
Weight of the whole machine: ≤8.5kg
Application scenarios: Ground fixed stations or mobile platforms such as airports, borders, seasides, and ships
